RCD, Contactor and Leakage Protection Integration for EV Charger PCBAs

RCD, contactor and leakage protection functions are integrated into EV charger PCBAs to improve electrical safety, charging reliability, and system protection performance. Modern EVSE designs operating from 230 V AC residential chargers to 1000 V DC fast charging platforms require accurate residual current detection, fast power disconnection, and reliable isolation control. A well-designed PCBA integrates sensors, control circuits, contactor drivers, and communication interfaces into one compact solution. RCD detection accuracy, contactor response time, and insulation design directly affect charger safety compliance and service life.

Electric vehicle charging equipment has developed from simple power supply units into intelligent systems that manage energy delivery, communication, and safety monitoring. According to IEC 61851 and IEC 62955 requirements, EV charging systems need protection against AC residual currents and smooth DC leakage currents. A typical home charger rated at 7.4 kW uses 230 V AC and 32 A current, while commercial DC chargers introduced after 2020 commonly operate between 400 V and 1000 V DC with power levels from 50 kW to more than 350 kW.

RCD, contactor, and leakage protection integration allows EV charger PCBAs to reduce external wiring, simplify assembly, and improve fault response consistency compared with separated protection modules.

Traditional charger architectures often placed RCD units, contactors, and control boards as independent components. This structure increased cable length, occupied more enclosure space, and created more connection points. Modern integrated PCBAs combine these functions into a single control platform. The design approach is widely used in wallbox chargers, fleet charging stations, and public charging equipment.

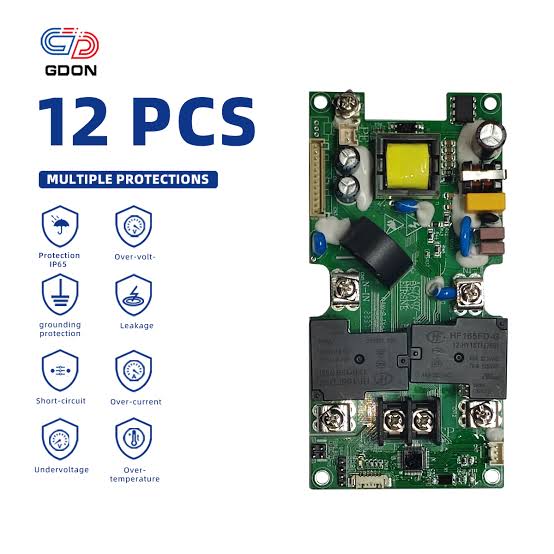

Gdon Tech EVSE PCBA provides integrated EV charging control board solutions designed for charger manufacturers requiring compact protection and control functions.

The RCD circuit detects the difference between current flowing through the phase conductor and the return path. Under normal conditions, the current balance remains stable. When insulation damage, moisture exposure, or vehicle-side electrical faults occur, residual current flows through unintended paths and triggers protection.

Typical RCD parameters used in EV charging applications include:

Parameter	Typical Range
AC residual current detection	30 mA
DC residual current detection	6 mA
Response time	100–300 ms
Detection accuracy	±5% to ±10%
Operating temperature	-40°C to +85°C

Since 2015, EV charging standards have increasingly required DC leakage detection because vehicle battery systems and power converters can generate smooth DC residual currents. Conventional Type AC protection devices may not detect this type of leakage, so EV chargers commonly use RDC-DD technology or integrated residual current monitoring circuits.

The sensing section of an EV charger PCBA usually includes a zero-sequence current transformer, Hall sensor, or fluxgate sensor. Among these methods, fluxgate-based solutions provide higher sensitivity for small DC currents but generally have higher component costs. Hall-effect sensors offer compact size and are often selected for chargers where space is limited.

The signal processing circuit must separate real leakage events from electrical noise generated by switching power electronics. Many EV chargers use analog filtering combined with microcontroller-based digital processing. A sampling frequency above several kHz is commonly applied in protection monitoring circuits, allowing the controller to identify abnormal current changes within milliseconds.

A reliable leakage protection design requires both accurate current measurement and stable signal processing under high-frequency switching conditions.

The contactor provides physical isolation between the power source and the vehicle battery system. Unlike semiconductor switches, mechanical contactors create an air gap after disconnection, providing strong electrical separation. This feature remains important for EV charging systems operating at hundreds of volts.

For a 22 kW three-phase AC charger, the contactor normally handles around 400 V AC and 32 A current. DC fast chargers rated above 150 kW may require contactors capable of switching 800 V DC systems. The contactor coil is controlled by the EV charger PCBA through a driver circuit consisting of MOSFETs, protection diodes, current limiting components, and feedback detection.

The interaction between RCD detection and contactor operation determines the protection sequence. When leakage current exceeds the programmed threshold, the controller verifies the signal, records the fault, and releases the contactor.

Typical sequence:

Stage	Processing Time
Leakage sensing	<20 ms
Signal evaluation	10–50 ms
Contactor release command	<20 ms
Mechanical separation	50–150 ms

The total shutdown time of many EV charging systems remains within 100–300 ms depending on contactor specifications and system design.

PCB layout has a strong influence on protection reliability because EV charger boards contain both high-voltage power sections and low-voltage control circuits. The separation between these areas requires proper creepage distance, clearance distance, and isolation design.

Typical PCB requirements include:

Design Factor	Common Value
PCB copper thickness	2–4 oz
Isolation voltage	2.5–5 kV
Creepage distance	6–14 mm
Clearance distance	3–8 mm

High-voltage areas normally use reinforced insulation methods, including optocouplers, isolated communication chips, and isolated DC/DC converters. Outdoor charging stations installed in parking areas also require protection against humidity, dust, and temperature changes.

A charger operating outdoors may experience temperature cycles from -30°C to 50°C depending on location. Over a service period of 10 years, the PCBA may complete hundreds of thousands of charging cycles, requiring stable component performance throughout its lifetime.

Thermal design becomes more important as protection functions become integrated into smaller PCBAs. Components such as contactor drivers, sensing circuits, and power relays generate heat during continuous operation.

Common thermal design methods include:

• Increasing copper area around high-current paths;

• Adding thermal vias below power components;

• Separating heat-generating components from sensing circuits;

• Using metal enclosure structures for heat dissipation.

For commercial chargers operating 12 hours or more per day, thermal management directly affects component aging speed. Laboratory reliability tests often include temperature cycling, humidity exposure, vibration tests, and electrical endurance tests according to international charging equipment standards.

Communication capability has become a standard feature in modern EV charger protection PCBAs. The protection board communicates with the main charger controller through CAN, RS485, SPI, or isolated UART interfaces.

The exchanged information may include:

Data Type	Function
Residual current level	Leakage monitoring
Contactor status	Switching confirmation
Fault records	Maintenance analysis
Temperature data	Protection adjustment
Insulation status	Charging permission control

Since 2020, many commercial charging networks have adopted remote monitoring platforms that collect charger operating data from thousands of installed units. Protection information helps operators identify abnormal charging conditions and arrange maintenance before equipment failure occurs.

The next generation of EV charger PCBAs is moving toward smaller size, higher integration, and improved digital monitoring. Solid-state switching devices, advanced current sensors, and software-based protection algorithms are being evaluated for future charging platforms.

Compared with mechanical contactors, solid-state switches can provide faster switching times, sometimes within microseconds. However, thermal management and cost remain important considerations, especially for high-power charging systems.

Future integrated protection PCBAs are expected to combine:

Technology	Application
Digital RCD monitoring	More accurate leakage measurement
Intelligent contactor control	Improved switching reliability
Remote diagnostics	Fleet maintenance support
Compact PCB integration	Smaller charger designs

The combination of RCD, contactor control, and leakage protection inside EV charger PCBAs supports safer charging operation across residential, commercial, and high-power charging environments. With charging power increasing from several kilowatts to hundreds of kilowatts, integrated protection design will continue to be an important part of EVSE development.
